Energy conservation

Reckless use of energy can cause issues for the business.

Everyone, regardless of whether in the public or private sector, is faced with the reality of having to take interest in energy conservation.
While it is important to develop environment-friendly alternative energy sources,
one of the easily achievable methods in energy conservation is to use higher efficiency machinery.
Hi-Core is committed to developing, producing and supplying higher efficiency turbo machines
(turbo blowers, turbo compressors) that can help you conserve energy.

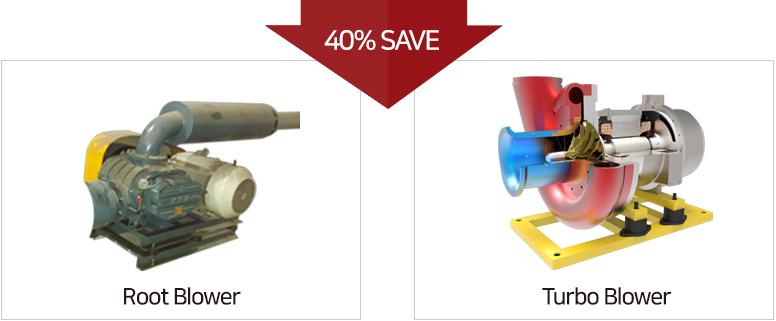

40% SAVE

Saving case

A

Saving case A
Items Comparison of specifications Electricity costs saved Note
Existing roots blower
Specifications of the root blower
  • 65kW, 40㎥/min, 0.5bar
  • 45kW, 40㎥/min, 0.5bar
Operational data
  • Capacity : 30+40㎥/min=70㎥/min
  • Power consumption : 45+65kW=110kW
  • Pressure : 0.45bar
Power consumption : 110kW
Annual electricity cost
(110kW*24h/Day*360Days*\54/㎾h)
= 950,400㎾h*\54/㎾h
=￦51,321,600

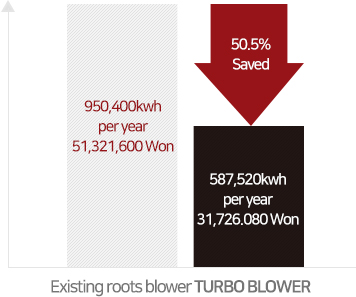

 그래프
TURBO BLOWER
Specifications of the turbo blower
  • 200HP, 0.6bar, 140㎥/min
Operational data
  • Capacity : 76㎥/min
  • Power consumption : 68kW
  • Pressure : 0.43bar
Power consumption : 68kW
Annual electricity cost
(68kW*24h/Day*360Day*\54/㎾h)
= 587,520㎾h*\54/㎾h
=￦31,726,080
Annual electricity cost saved
=￦19,595,520 (50.5%)
Increased convenience from having to manage and monitor only one turbo blower.

B

Saving case B
Items Existing ROOT BLOWER(75/200HP) TURBO BLOWER(75HP) Note
Data measurements from roots blower and turbo blower
Operating blower
  • Roots 75HP*3units
    200HP*1unit
Operation status.
  • 4500 mmAq
  • 204 m3/min
  • 319 kw
Operating blower
  • Turbo 75HP*4units
Operation status.
  • 4500 mmAq
  • 204 m3/min
  • 204 kw

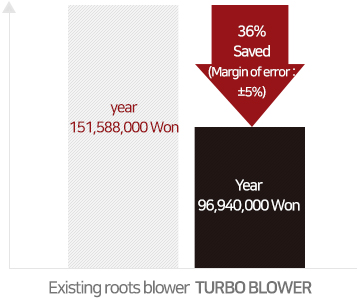

 그래프
Electricity cost saved
Annual electricity cost
  • 319Kw/h/*24hr*330Days/Year*60Won
    =151,588,000 Won/year
Annual electricity cost
204Kw/h/Days*24h*330Days/Year*60Won
=96,940 Won/year
319Kw-204Kw=
▼ 115 Kw
Annual electricity cost saved
:54,648Won/year

There are many ways to conserve energy that you can choose from.
But the choice is not an easy one.

High efficiency BLDC(PM)
Uses motor
One unit built-in high efficiency
Uses impeller
Contact-less, no need for supply of oil
Uses air foil bearing
Ultra energy-conserving type
Uses impeller
  • Pure Air
  • Good Efficiency
  • Compactness
  • No Gear
  • Vibration
  • Low Noise
  • No Oil System
